EI 914

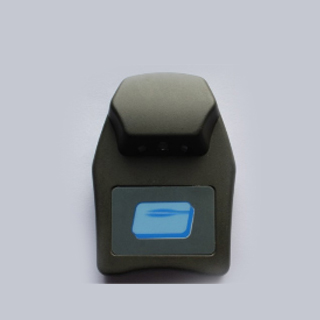

The EI 914 is a Contactless Smart Card Reader/writer for initialization and personalization of smart cards. It supports ISO14443 type (A) standard cards. This can be used with application keys, personal details, access codes, facility codes, name and any other data that is required depending on the application.

The encoded data can be re-verified on the EI914 reader itself.

- Conforms to ISO 14443A (Type 1, 2, 3) (Type 4 on request) (13.56 MHz) and on request to Mifare Desfire, JAVA, Proximity technologies

- Fast read and write operation time, less than one second

- Visual (LED) feedback

- It has a slim profile which is attractive on the desktop.

- On offer with RS232 interface so that Communication to PC with RS232 port is also possible.

- Conforms to CE and ROHS

Voltage requirement 5Vdc (PS module is supplied along with Reader for RS232 versions)/ For USB, direct USB power from PC Reader Output RS232 COM port/USB based on Request
Reader Output RS232 COM port/USB based on Request
Current Consumptions 120 ma max
Normal current consumption 80 ma
Read range Designed for close coupling
Operating temperature 0oC to + 55oC (32oF to 131oF)
Relative humidity 90% max, operating non-condensing
Reader Dimensions 97mm x 68 mm x 25 mm approx.
Status LED Amber, Green & Red
Termination 100CM RS232 Cable with power module also forming a part of the supply. USB cable for USB version
Weight 170 gms approx
Color Superfine Silver Metallic finish for top and Matt Black for bottom
Warranty Policy Warranty for 1 year against defective workmanship
Technical warranty Lifetime
Certifications CE & ROHS
