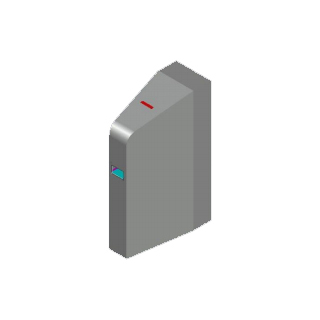

Card Swallower – EI902

The Card swallower unit is a highly customized product with contactless Smart card reader. The Card Swallower can be made as a custom fixed one with all the other components within an Automatic gate or it can be a standard SS stem enclosure placed separately beside the gate based make of the gate and on site requirement.

The Card Swallower is designed and developed indigenously in India by Electron India.


- Major Components:
- Smart card Reader
- Card Acceptor Chute
- Card collection Bin
- Rejected card Chute

- Smart card readers Conforms to ISO 14443A (Type 1, 2, 3) (13.56 MHz)

- Readily compliant - Contactless Smart cards like Mifare classic, Desfire EV1, JAVA OS, SCOSTA CL etc which complies with ISO14443A

- Versatile Applications - Ideal for end-user environments using contactless smart card technology with security support.

- Designed for User Convenience, components are placed in a replaceable manner.

- Robust path selection mechanism

- In-built Card collection Bins

- Trap doors for easy way out of Rejected cards

- The card swallower reader can be connected to IP Access Door Controller via 8 core multi strand cable

- It shall be installed on suitable mountings of appropriate height depending upon the location

- Once the card is dropped in the card slot, weigand data will be sent to the controller which can authenticate and subsequently give a signal to the boom barrier/ turnstiles/ solenoid lock controlled gate/doors to operate.

Reader Type Smart card reader to read Desfire EV1 contactless cards (ISO14443)
Supported reader output Wiegand (26 to 100 bits)
Read range Min. 3cms
Functional Indication Multicolor indication with Tri-colour LED
Operating voltage 12 VDC
Working temperature 0 to 55 °C
Humidity 10-95% non-condensing
Application Indoor and Outdoor (Under a canopy)
Card holding capacity Min. 100
Alarm Buzzer & LED indication
