EI653 Series

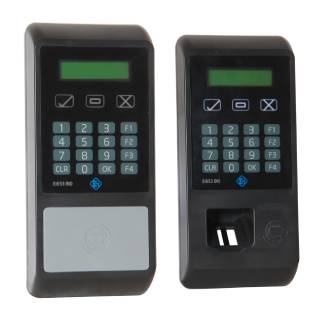

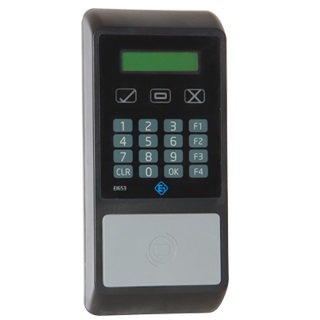

EI653 series is a Smart card reader which has options for finger biometric sensor and IP rated casings. The templates can be stored directly in the device or in the smart card based on the functionality. The comparison is between the live finger presented and the fingers available in the Device’s database 1:N or in the card 1:1 mode.

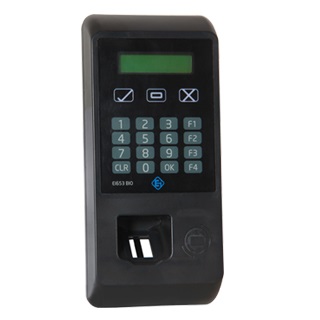

EI653 Bio offers high level security by combining leading edge fingerprint scanning technology for secure user verification and authentication. The verification time would be less than 2 second for 5000 records. It can store up to 1,00,000 transactions based on the memory.


- Device is logically designed in modular way for any future upgrades

- Leading edge optical based sensor technology, STQC certified Sensor: MSO CBME2

- Fast Identification (<=1 sec) and authentication time; less than one second, rotation Invariant

- Response time is less than 0.2 secs, works well for Rough, moist or dry fingers

- Scratch and ESD resistant (toughened Glass) Optical sensor with FFD feature

- On-the-Device finger template capture capability with First pass feature (Adaptive algorithm)

- Built-in Ethernet interface (RJ45), USB Host, RTC with NVSRAM

- Robust display, 2 Line 16 Character LCD, 3 Inch TFT on demand

- Audio-Visual feedback

- The device is CE and ROHS certified

- Capacitive Touch sense keypad, Enable / Disable through software

- 500, 3000, 5000 and 10,000 records capacity with 1,00,000 transactions

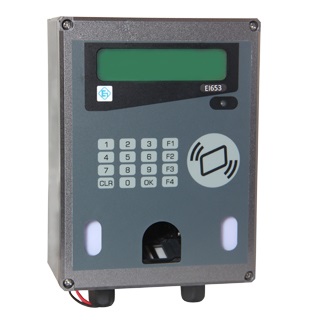

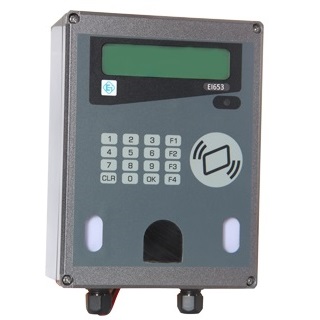

- IP54 or better rated casing is provided on request (Different physical form factor)

- Multiple Admin Login failure and other security breach will be logged in central server Event based

Micro-controller 32 bit – 512kB programmable Flash – Cortex M3 architecture
Card Reader frequency 13.56 MHz
Storage Memory 512 KB NVSRAM with 16 MB Flash extendable upto 64 MB
Users capacity For Card + Bio – 16000 users, for only Bio 500/3000/5000/10000
Transaction capacity 16MB – 100000 scalable to 400000 for 64 MB Flash
Input Power 12 – 14V DC @ 2A
Communication Interface Ethernet and USB HOST
Keypad Built-in Touch keypad (16 keys with 4 Function keys)
Biometric Sensor Optical – Finger sensor – Morpho – 500 DPI
F.A.R / F.R.R 0.001% / 0.1% (configurable based on user conditions)
Finger template format Morpho Secured format or ISO19794 -2/4 (On Demand)
Visual Indication Tri color Leds – Green, Red and Amber Display - 16 chars x 2 Lines Alphanumeric Display
Audio Indication Buzzer
Input / Output 4 optically Isolated / 3 Potential Free Contacts with NO/NC option
Warranty 1 year against defective workmanship
Technical Warranty 84 months from manufacturing date
